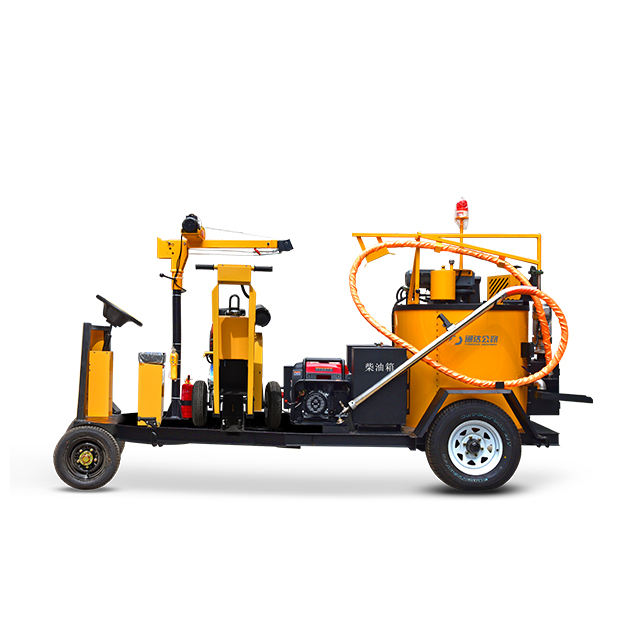

Pothole Repair Equipment Road Repair Machine 200L Asphalt Crack Filling Sealing Machine
Product successfully added to the Quote List
Description
Pothole repair equipment road repair machine 200L Asphalt Crack Filling Sealing Machine
500L Highway Crack Filling Machine also called road crack sealing machine, asphalt crack filling and sealing machine, it is mainly used for asphalt pavement, cement pavement surface cracks repair and treatment. In the highway, municipal highway, airport roads, bridge crack, county roads and other aspects,the machine can irrigate asphalt, pour glue, etc..
Road crack filler and sealer applied to seal pavement cracks. It is independently developed by our company. It has large capacity hopper, fast heating and the thermal insulation effect is good, heat conduction oil cyclic heating.
Compared with similar equipment, it is easy to operate, more stability and maneuverability, and have a long service life.
Sealing hand cart with heater
With rubber hose
Frequency control asphalt sealant flow rate
Easy to pack and transfer
Large capacity save construction man cost
Self driving type asphalt filling machine
Asphalt crack sealant
Traction type crack sealing machine
PRODUCT SPECIFICATIONS
|
NO.
|
Items
|
TDQ-500
|
TDQR-500
|
TDZ-500
|
TDZR-500
|
|
1
|
Overall dimension
|
4455x1820x2270mm
|
4455x1820x2270mm
|
3000x1700x2000mm
|
2500x1700x1850mm
|
|
2
|
Sealant tank
|
500L
|
500L
|
500L
|
500L
|
|
3
|
Net weight
|
1500kg
|
1350kg
|
1250kg
|
1250kg
|
|
4
|
Melt capacity
|
260kg/h
|
260kg/h
|
260kg/h
|
260kg/h
|
|
5
|
Burner brand
|
Beckett
|
Beckett
|
Beckett
|
Beckett
|
|
6
|
Burner calorific value
|
92400Kcal/h
|
92400Kcal/h
|
92400Kcal/h
|
92400Kcal/h
|
|
7
|
Conduction oil consumption
|
140L
|
140L
|
140L
|
140L
|
|
8
|
Volume of burner diesel tank
|
80L
|
80L
|
80L
|
80L
|
|
9
|
Mixer power
|
1.5KW
|
1.5KW
|
1.5KW
|
1.5KW
|
|
10
|
Heating power for sealant output hose
|
1.08KW
|
/
|
1.08KW
|
/
|
|
11
|
Sealant output motor power
|
1.1KW
|
/
|
1.1KW
|
/
|
|
12
|
Sealant output hose length
|
7m
|
/
|
7m
|
/
|
|
13
|
Generator max. power
|
7KW
|
7KW
|
7KW
|
7KW
|
|
14
|
Generator oil tank
|
25L
|
25L
|
25L
|
25L
|
|
15
|
Generator oil consumption
|
1.1L
|
1.1L
|
1.1L
|
1.1L
|
|
16
|
Output voltage
|
380V/220V
|
380V/220V
|
380V/220V
|
380V/220V
|
|
17
|
Tyre model
|
ST255/75R15
|
ST255/75R15
|
/
|
/
|
Nine Notes for the Operation of the Asphalt Crack Filling Machine:
1. The operator of the asphalt crack sealing machine must be trained.
2. Workers should wear reflective overalls when working on the road.
3. Before starting working, workers should check the oil circuit and pipeline connection to ensure no leakage when the crack
sealing machine is working.
4. Be careful of the high-temperature part of the asphalt crack sealing equipment to avoid burns.
5. When adding the cracking sealing material, pay attention to avoiding the asphalt splash.
6. There should be no water and air when adding heat conduction oil.
7. When operating the road crack sealing machine, please keep an eye on the condition of the furnace and temperature thermometer.
8. If an emergency happens, please turn off the power supply engine in time.
9. Don’t put stones and other debris into the oil tank of the hot asphalt crack filler machine.
2. Workers should wear reflective overalls when working on the road.
3. Before starting working, workers should check the oil circuit and pipeline connection to ensure no leakage when the crack
sealing machine is working.
4. Be careful of the high-temperature part of the asphalt crack sealing equipment to avoid burns.
5. When adding the cracking sealing material, pay attention to avoiding the asphalt splash.
6. There should be no water and air when adding heat conduction oil.
7. When operating the road crack sealing machine, please keep an eye on the condition of the furnace and temperature thermometer.
8. If an emergency happens, please turn off the power supply engine in time.
9. Don’t put stones and other debris into the oil tank of the hot asphalt crack filler machine.
