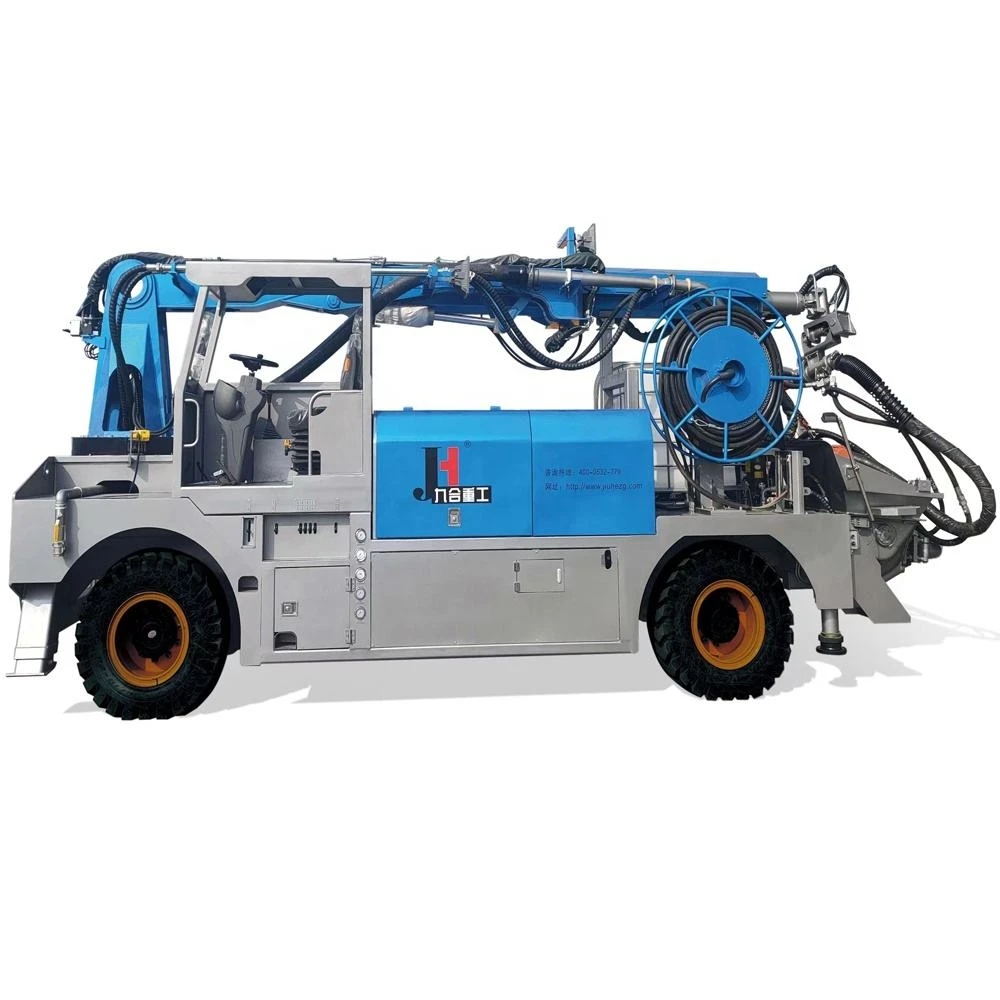

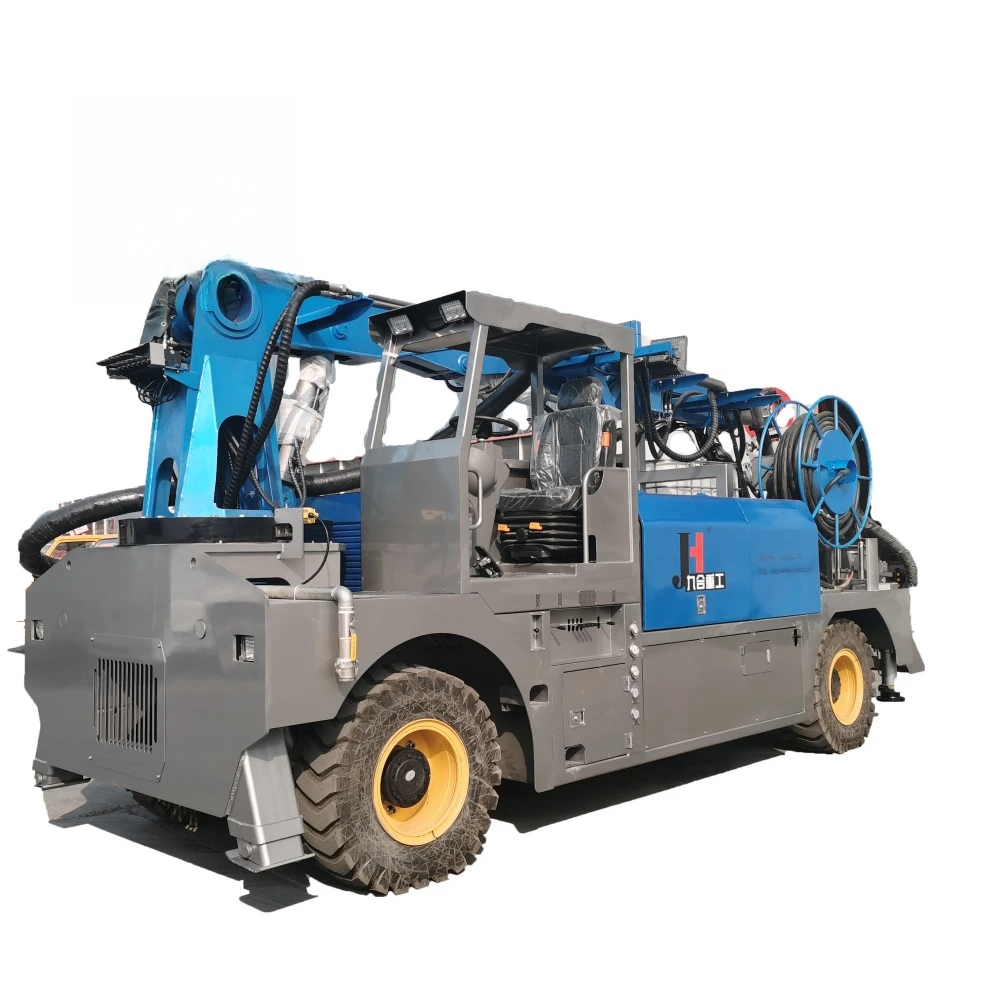

Jiuhe Brand 4×4 Drive Tunnel Construction Wet Shotcrete Machine Concrete Sprayer Robot Mortar Spray Machine
Product successfully added to the Quote List
Description
Jiuhe brand 4×4 drive tunnel construction wet shotcrete machine concrete sprayer robot mortar spray machine
|
JHGHP30
|
Item
|
Unit
|
Parameter
|
|
Whole machine
|
Dimension
|
mm
|
7900*2580*3240
|
|
Weight
|
Kg
|
17400
|
|
|
Working driving mode
|
–
|
Electromotor+Diesel
|
|
|
Diesel power
|
Kw
|
93
|
|
|
Spraying boom
|
|
|
|
|
Turntable rotation angle
|
°
|
-5 ~ +290
|
|
|
Big arm pitching angle
|
°
|
-30 ~ +60
|
|
|
Small arm pitching angle relative with big arm
|
°
|
-60 ~ +30
|
|
|
Small arm rotation angle relative with big arm
|
°
|
-70 ~ +180
|
|
|
Spraying vertical height
|
m
|
17.5
|
|
|
Spraying horizontal distance
|
m
|
14.5
|
|
|
Max,spraying depth
|
m
|
6.5
|
|
|
Spraying head rotation angel
|
°
|
360
|
|
|
Spraying head vertical axial swing angle
|
°
|
240
|
|
|
Pumping system
|
Rated output capacity
|
m³/h
|
30
|
|
Max.output pressure
|
Mpa
|
7.5
|
|
|
Reversing times
|
time
|
24
|
|
|
System pressure
|
Mpa
|
24
|
|
|
Concrete cylinder inner dia.
|
mm
|
180
|
|
|
Main oil cylinder inner dia/Rod dia
|
mm
|
Φ100/Φ70
|
|
|
Concrete cylinder stroke
|
mm
|
1000
|
|
|
Delivery pipe size
|
mm
|
Φ100-Φ80
|
|
|
Distribution valve type
|
–
|
S Tube valve
|
|
|
Driving system
|
Alex base
|
mm
|
4500
|
|
Front and rear axle driving mode
|
–
|
Four-wheel drive two-way driving
|
|
|
Max. speed
|
Km/h
|
30
|
|
|
Ground clearance
|
mm
|
350
|
|
|
Braking length
|
m
|
≤5
|
|
|
Hydraulic system
|
Rated motor power
|
Kw
|
|
|
75
|
|||
|
Rated voltage/frequency
|
–
|
380v-50hz
|
|
|
Rated speed
|
R/min
|
1480
|
|
|
Model
|
–
|
Full hydraulic reversing open hydraulic system
|
|
|
Oil pump assembly
|
–
|
A11VLO130+A11VO60+A10VO28
|
|
|
Pumping oil pressure
|
Mpa
|
31.5
|
|
|
Hydraulic tank capacity
|
L
|
600
|
|
|
Oil cylinder capacity
|
L
|
150
|
|
|
Auxiliary system
|
Cable speci,length
|
–
|
Φ50*3+Φ16*1*100
|
|
Additive output flow
|
L/h
|
0~1000
|
|
|
Additive output pressure
|
Mpa
|
1.8
|
|
|
Accelerator tank capacity
|
L
|
1000
|
