Road Cold Asphalt Recycling Machine WR450 Small Asphalt Milling Machine
WR400/450D is suitable for road, city roads, squares, docks, parking lots and other projects of the grass-roots, ground-level stable soil site in-place mixing operation, but also applicable to low-grade road construction operations. Mixable I, II soil and stable materials, allowing the addition of stone with a particle size of less than 40mm to the mixing material, as well as grade III, IV soil or stable soil materials.
Characteristics
• It adopts NTA855-C450 diesel engine, which features advanced fuel system and inlet and exhaust system, strong power and good performance. * With rotor technology, the milling cutters and cutter holders feature reasonable design and high milling accuracy. * It adopts the drive axle which has advanced design, reasonable structure, and reliable manufacturing quality. * The steering system has multiple steering modes like front axle steering, rear axle steering, and combined steering, which increases the effective work time. * It adopts the drive axle which has advanced design, reasonable structure, and reliable manufacturing quality. The milling rotor is driven by high-speed variable motor and reducer. * The traveling system includes two speed modes, namely high speed mode and low speed mode. The front/rear axles are steering drive axles (Optional rear steering axle is available) to realize four-wheel steering and the installed low-pressure wide-base isolated-pattern tires feature stable operation and high adhesion. * The engine includes advanced functions, including online display, malfunction diagnosis, and malfunction warning. In addition, the data can be more directly read by the installed display. * The hydraulic system adopts imported product of world-famous brand, which has the advantages like high allowed pressure, high efficiency, low noise, and complete functions; the pump is integrated with pressure limit valve, high-pressure safety valve, bypass valve and etc, which simplifies the hydraulic system for easy installation and service. * The cab is installed at the front which has a wide view; it is equipped with audio system, luxury seat, air conditioner, warm-air blower, and etc. providing a comfortable environment for higher work efficiency.steering, which increases the effective work time.
PRODUCT SPECIFICATIONS
|
Item
|
WR450
|
WR450D(4 drive)
|
Unit
|
|
Mixing width
|
2100
|
2100
|
mm
|
|
Mixing depth
|
0~400
|
0~400
|
mm
|
|
Travel speed
|
0~20
|
0~20
|
km/h
|
|
Operating speed
|
0-2.8
|
0-2.8/0-2.1
|
km/h
|
|
Gradeabity
|
20
|
20
|
%
|
|
Engine
|
|||
|
Manufacturer
|
Chongqing Cummins
|
Chongqing Cummins
|
|
|
Model
|
NTA855-C450
|
NTA855-C450
|
|
|
Rated power
|
336
|
336
|
kW
|
|
Rated speed
|
2100
|
2100
|
r/min
|
|
Maximum torque
|
1831/1400
|
1831/1400
|
N.m/rpm
|
|
Volume
|
|||
|
Fuel tank
|
500
|
500
|
L
|
|
Hydraulic tank
|
320
|
320
|
L
|
|
Tire
|
|||
|
Front tire
|
23.5-25
|
23.5-25
|
|
|
Rear tire
|
23.5-25
|
23.5-25
|
|
|
Measurement
|
9600×3150×3350
|
9600×3150×3350
|
mm
|
|
Weight
|
24500
|
24500
|
KG
|

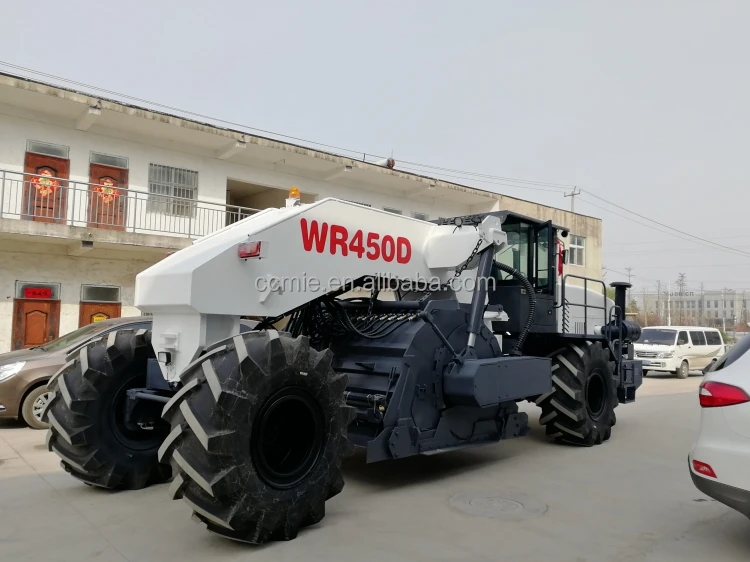

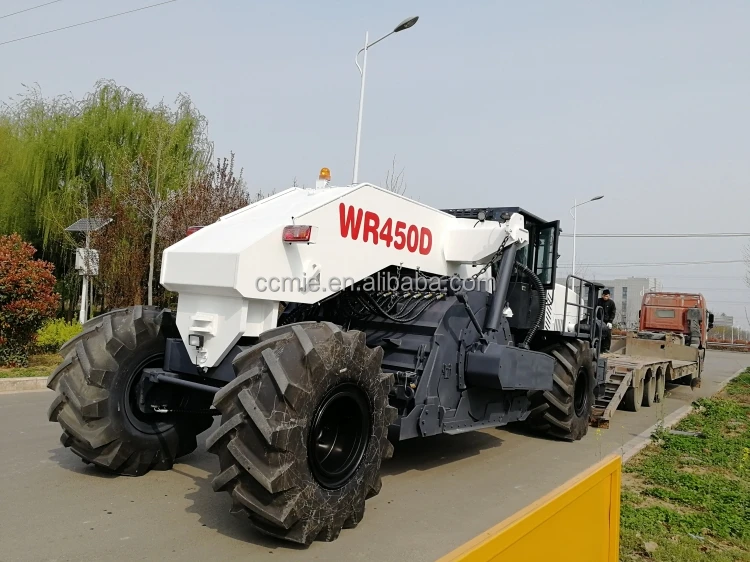

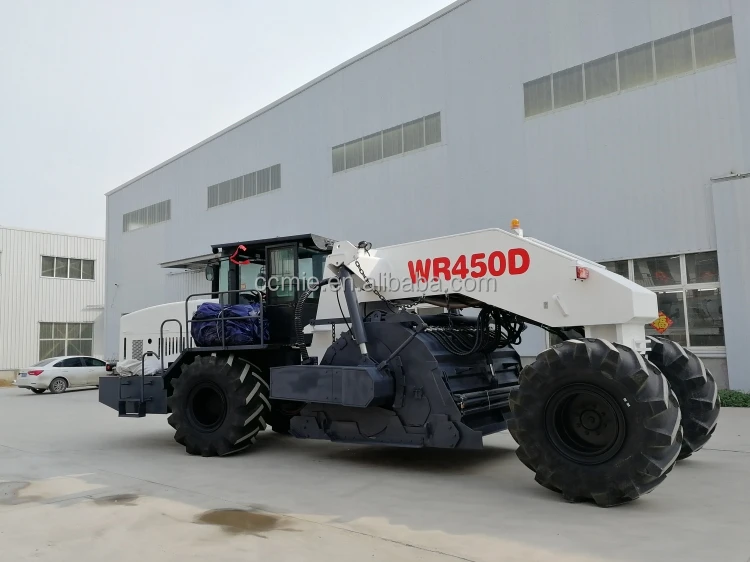

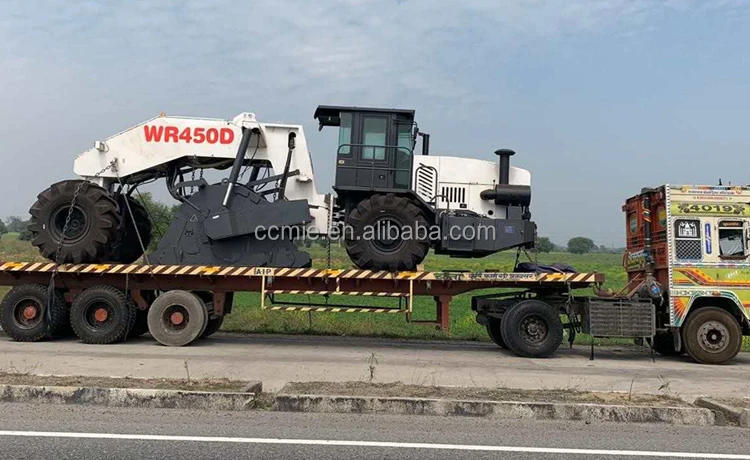

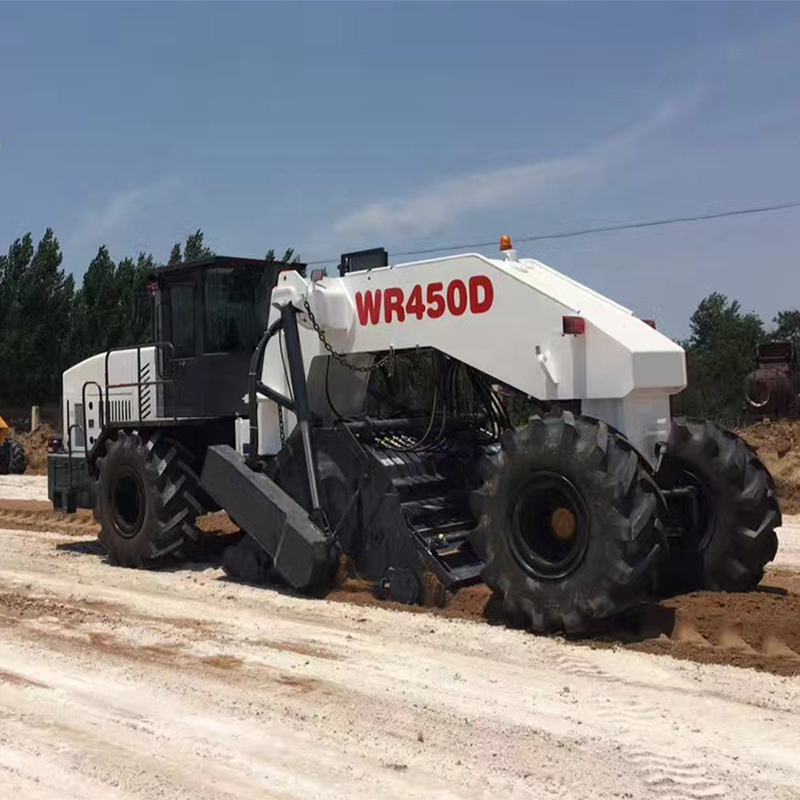

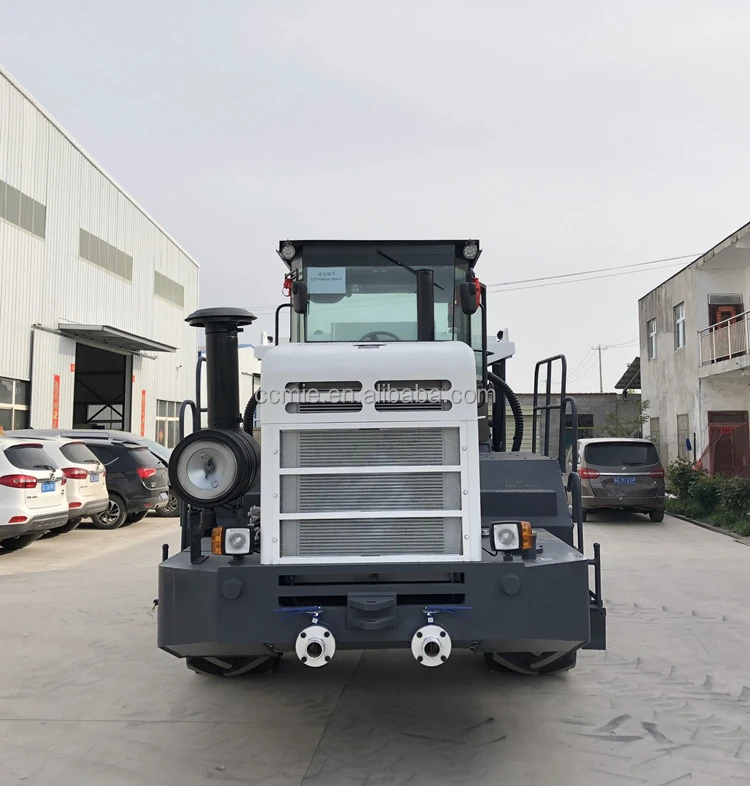

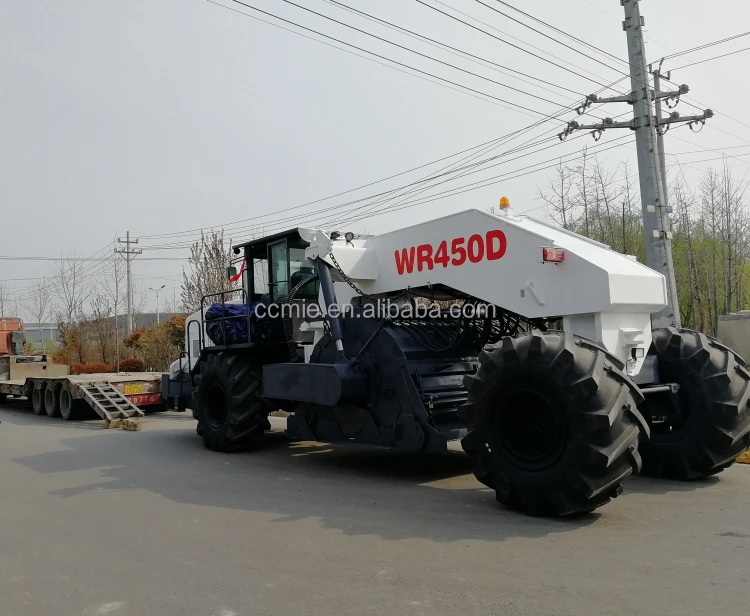

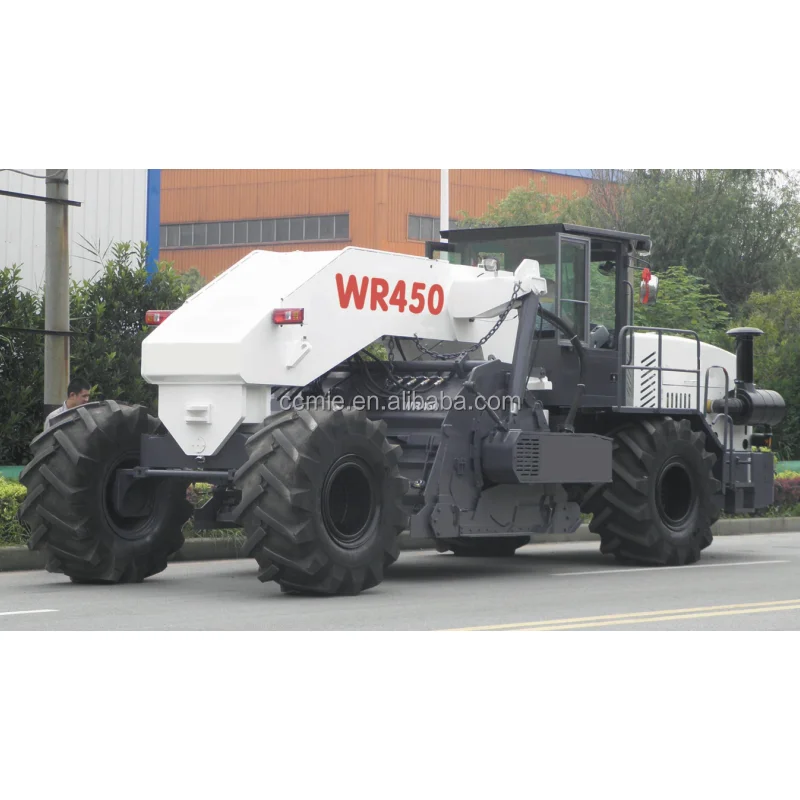

Details Images
